Fold Spray Boom

CAUTION: Avoid injury or death to others. Make sure no one is standing near the spray boom when folding to transport position.

1. Press top of the raise/lower center frame button (A) and raise spray boom to the highest position.


   BM026945-UN-02MAR18

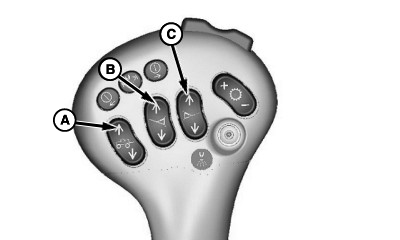

   A - Raise/Lower Center Frame Button

   B - Left-Hand Side Fold/Level Button

   C - Right-Hand Side Fold/Level Button

---




2. Tilt both sides of the spray boom up to the maximum level by pressing top of the left-hand side fold/level button (B) and the right-hand side fold/level button (C).

3. Press and hold the fold mode switch (D) down while pressing top of the left-hand side fold/level button (B) and the right-hand side fold/level button (C) to fold both sides of the outer spray boom sections. Momentarily release spray boom fold/level buttons (B) and (C), then press and hold them again to fold the inner spray boom sections.


   BM026945-UN-02MAR18


   BM026946-UN-02MAR18

   A - Raise/Lower Center Frame Button

   B - Left-Hand Side Fold/Level Button

   C - Right-Hand Side Fold/Level Button

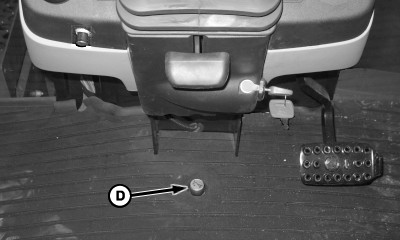

   D - Fold Mode Switch

   NOTE: When using the fold mode switch (D), the raise/lower center frame button (A) function changes and can be used to operate both sides of the spray boom simultaneously.

---




4. Release all the switches.

5. With the inner spray booms completely folded, press bottom of the left-hand side fold/level button (B) and right-hand side fold/level button (C) to level the spray booms onto the front rests.


   BM027390-UN-26SEP18

   A - Raise/Lower Center Frame Button

   B - Left-Hand Side Fold/Level Button

   C - Right-Hand Side Fold/Level Button

---




6. Press bottom of the raise/lower center frame button (A) and lower spray booms onto the rear rests.
