Set Spray Off Pressure

The spray rate control unit (SRC) attains the spray off pressure when the spray system master switch is off. Spray off pressure is the pressure the solution pump maintains when not spraying.

IMPORTANT: Spray off pressure is primarily intended to increase agitation when not spraying. It should not be used as a mean for spray boom charge compensation.

1. Select the Menu button.

2. Select the Sprayer Application button.

3. Select the Setup Menu softkey (A).


   BM011351-UN-29MAR17

   Menu Button → Sprayer Application Button → Setup Menu Softkey → Spray Setup Tab


   BM017148-UN-17NOV16

   Spray Setup Page

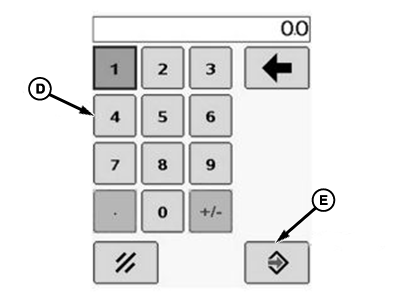

   BM002466-UN-24SEP15

   Popup Keypad

   A - Setup Menu Softkey

   B - Spray Setup Tab

   C - Spray Off Pressure Input box

   D - Popup Keypad

   E - Accept Button

---




4. Select the Spray Setup tab (B).

5. Select the spray off pressure input box (C).

6. Enter a new value using the popup keypad (D).

7. Select the Accept button (E) to accept the new value.
