Enable/Disable Boom Pressure Relief

CAUTION: Avoid unintended spray from nozzles. Do not enable the boom pressure relief when a non-John Deere after-market solution system equipment is installed. These include but are not limited to, direct injection and section control systems.

1. Select the Menu button.

2. Select the Sprayer Application button.

3. Select the Setup Menu softkey (A).


   BM011351-UN-29MAR17

   Menu Button → Sprayer Application Button → Setup Menu Softkey → Spray Setup Tab

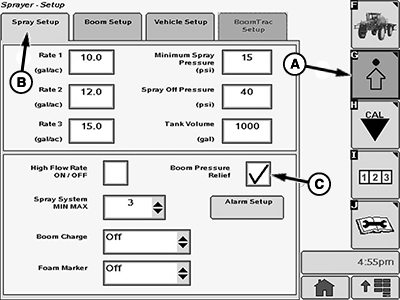

   BM017152-UN-17NOV16

   Spray Setup Tab

   A - Setup Menu Softkey

   B - Spray Setup Tab

   C - Checkbox

---




4. Select the Spray Setup tab (B).

5. Select the checkbox (C). A check mark appears inside the checkbox.

6. To disable, select the checkbox (C) once again. The check mark disappears from the checkbox.
