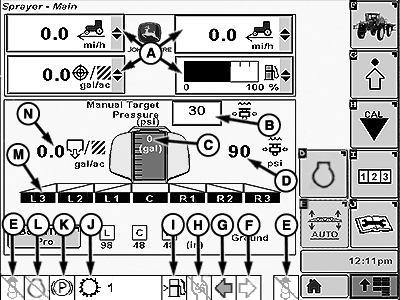

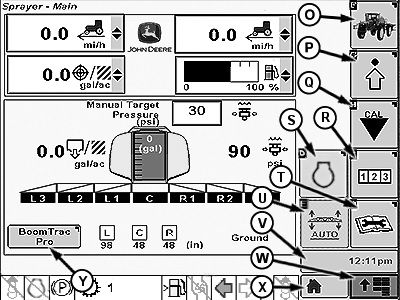

Sprayer Main Page

BM002461-UN-15AUG18

BM002462-UN-15AUG18

A - Information Drop Down Menu

B - Manual Target Pressure

C - Estimated Remaining Tank Volume

D - Pressure

E - Left or Right Foam Drop Status

F - Right Turn-Signal Indicator

G - Left Turn-Signal Indicator

H - Solution Pump Status

I - Fuel Status Icon

J - Speed Range Selected

K - Machine in Park Position

L - FieldCruise™ Status Icon

M - Spray Boom Sections Status

N - Current Rate Per Area

O - Sprayer Main Softkey

P - Setup Menu Softkey

Q - Calibration Menu Softkey

R - Totals Softkey

S - FieldCruise™ Softkey

T - Diagnostics Softkey

U - BoomTrac Pro™ Softkey (If Equipped)

V - Message Center/Time Display

W - Menu Button

X - Home Button

Y - BoomTrac Pro™ Button (If Equipped)
