Reset Spray Calibrations to Factory Default Settings

1. Select the Menu button.


   BM011363-UN-31MAR17

   Menu Button → Sprayer Application Button → Calibration Menu Softkey → Spray Calibration Tab


   BM017163-UN-18NOV16

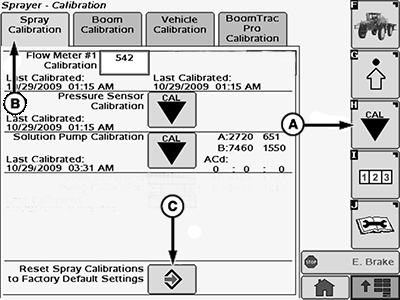

   Spray Calibration Page

   A - Calibration Menu Softkey

   B - Spray Calibration Tab

   C - Enter Button

---




2. Select the Sprayer Application button.

3. Select the Calibration Menu softkey (A).

4. Select the Spray Calibration tab (B).

5. Select the Enter button (C). Reset Spray Calibrations to Factory Default Settings page is displayed.

6. Read all instructions shown on the screen before proceeding.


   N93032-UN-16NOV16

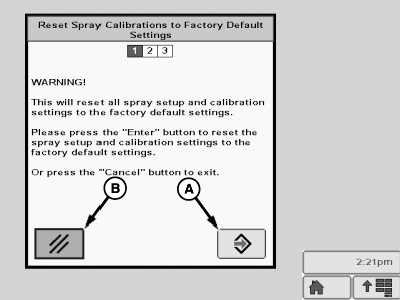

   Reset Spray Calibrations to Factory Default Settings—Page 1

   A - Enter Button

   B - Cancel Button

---




7. When finished, select the Enter button (A) to proceed or select the Cancel button (B) to exit.

8. Read all instructions shown on the next screen before proceeding.

9. When finished, select the Enter button (A) to proceed or select the Cancel button (B) to exit.
