Fence Row Nozzles (If Equipped)

No setup in the SprayStar™ system is needed for the fence row nozzles.

N82187-UN-03NOV08

BM017206-UN-06JAN17

A - Fence Row Nozzle Switches

B - Cone

C - Cone

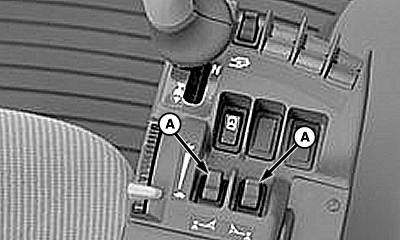

The SprayStar™ system recognizes the fence row nozzles when the fence row nozzle switches (A) are installed on the console. The Spray Rate Controller is automatically adjust when the fence row nozzle is turned on.

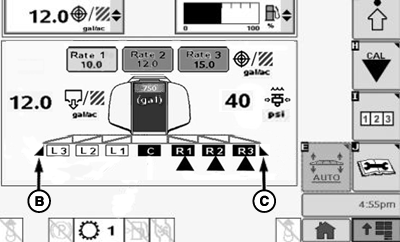

When the fence row nozzle is turned on, a cone (B) or (C) appear at the end of the boom sections on Sprayer Main Page.

The hectare (ha) counter on SprayStar™ display records the additional spacing of 508 mm (20 in) per end row nozzle when turned on.

NOTE: Fence row nozzle will not operate if outer section on the corresponding side (left-hand side or right-hand side) is not enabled.
