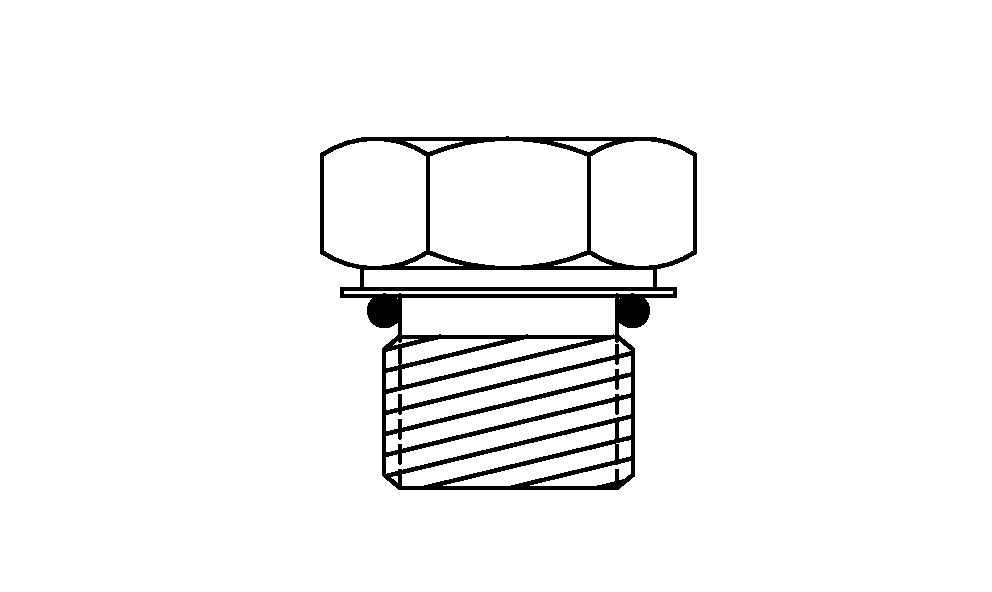

External Hexagon Port Plug Torque Chart
H70356-UN-30NOV01
|
Port or Stud End Thread Size1 |
Torque +15%, —20% |
|---|---|
|
N·m (lb.-in.) |
|
|
M8 x 1 |
10 (89) |
|
M10 x 1 |
17 (150) |
|
N·m (lb.-ft.) |
|
|
M12 x 1.5 |
28 (20.6) |
|
M14 x 1.5 |
39 (28.7) |
|
M16 x 1.5 |
48 (35.4) |
|
M18 x 1.5 |
60 (44.2) |
|
M20 x 1.5 |
60 (44.2) |
|
M22 x 1.5 |
85 (62.7) |
|
M27 x 2 |
135 (99.6) |
|
M30 x 2 |
165 (121.7) |
|
M33 x 2 |
235 (173.3) |
|
M38 x 2 |
245 (180.7) |
|
M42 x 2 |
260 (191.8) |
|
M48 x 2 |
290 (213.9) |
|
M60 x 2 |
330 (243.4) |
|
1 Port to JDS-G173.1; stud end to JDS-G173.3.
|
