Wheel Decals

The wheel decals show some important information regarding the care of wheels and tires.

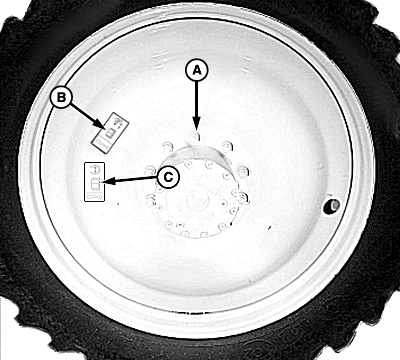

N98311-UN-04MAY12

A - Wheel Nuts

B - Wheel Hardware Torque Decal

C - Tire Pressure Decal

Decal B: Crosswise tighten the wheel nuts (A) to specification:

Item	Measurement	Specification
Wheel Nuts (A)	Torque	400 N·m (295 lb·ft)

Retighten the wheel nuts after 1 hour and thereafter daily until torque is maintained. After, check the torque at every 100 hours.

Decal C: Maintain proper inflation pressure for prolong tire life. See Wheels, Tires, and Tread section.
