Tighten Wheel Nuts

IMPORTANT: Damage to the planetary hub and wheel can occur if the correct wheel nut torque is not maintained. Tighten the wheel nuts in a crosswise pattern to specification. Tighten the wheel nuts after first 1 hour of use, and daily thereafter until the torque is maintained. Check the wheel nuts torque at every 100 hours.

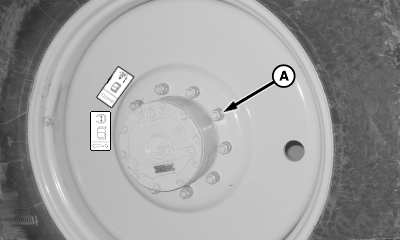

Crosswise tighten wheel nuts (A) to specification:

N83108-UN-07MAY12

A - Wheel Nuts

Item	Measurement	Specification
Wheel Nuts	Torque	400 N·m (295 lb·ft)
