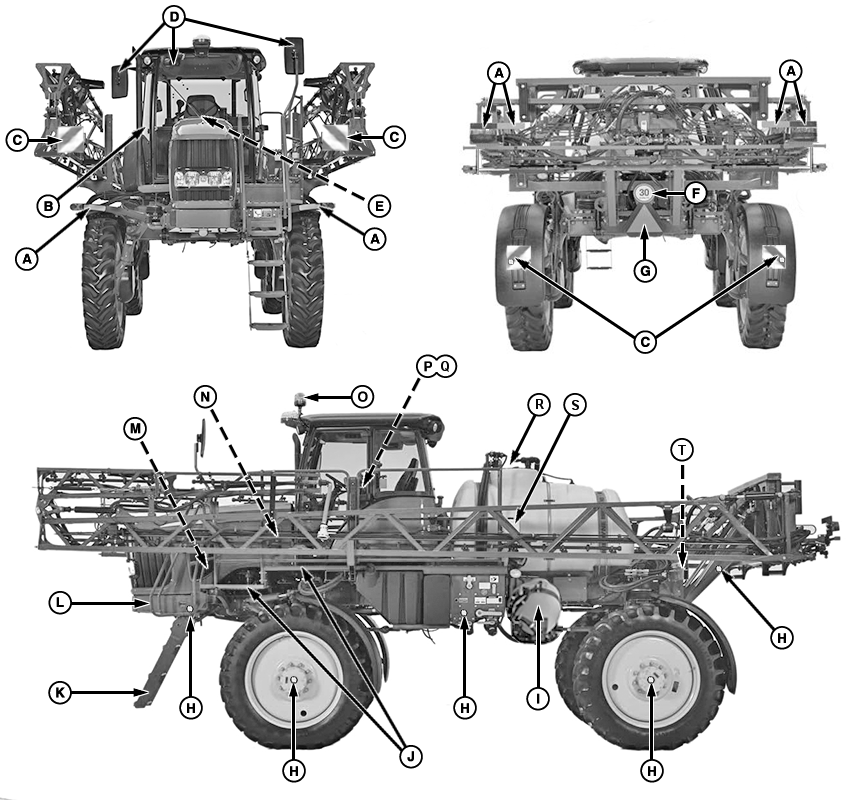

Safety Features

BM028395-UN-24OCT19

A - Front and Rear Hazard Warning Lights and Reflectors

B - Emergency Exit

C - Road Warning Signs (if equipped)

D - Outside and Rearview Mirrors

E - Seat Belt

F - Speed Limit Decal

G - Slow-moving Vehicle (SMV) Emblem

H - Warning Signs (if equipped)

I - Ground Level Filling

J - Slip Resistant Surfaces

K - Access Steps and Platforms

L - Handrails

M - Fan Guards

N - General-Purpose Fire Extinguisher (if equipped)

O - Beacon Light (if equipped)

P - Neutral Start System

Q - Automatic Park System

R - Hoses on Top of the Solution Tank

S - Clean Water Tank

T - Wheel Chock (if equipped)

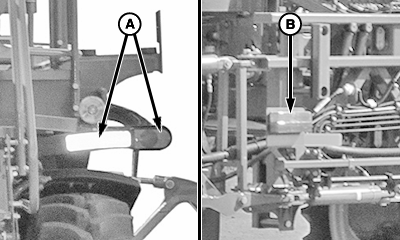

Front and Rear Hazard Warning Lights and Reflectors: Alerts oncoming and following traffic of the machine presence on roads.

BM011349-UN-24APR17

A - Front Hazard Warning Lights and Reflectors

B - Rear Hazard Warning Lights

Emergency Exit: If an emergency occurs, exit from the right-hand side of the cab. To open the emergency exit, remove the pin (A) and push the window.

N84876-UN-04JUN09

A - Pin

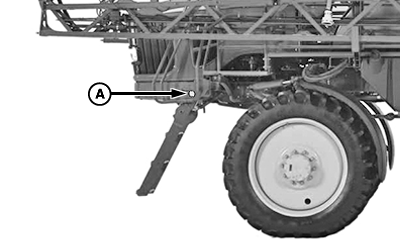

Road Warning Sign (if equipped): Alerts the machine presence on roads.

BM027462-UN-18OCT18

A - Road Warning Sign (if equipped)

NOTE: The image shown is only for reference. There are road warning signs on other locations of the machine.

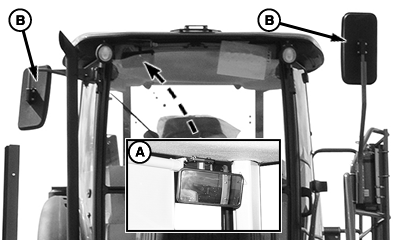

Outside and Rearview Mirrors: Provide clear view of the sprayer surroundings. Adjust the rearview mirror (A) and the outside mirrors (B).

BM011339-UN-29MAR17

A - Rearview Mirror

B - Outside Mirrors

Seat Belt: Reduce the probability of serious injury during an accidental machine roll-over.

N60684-UN-30JUL02

A - Seat Belt

Speed Limit Decal: Used to designate the maximum ground speed for which a machine has been designed to operate or can be driven on public roads.

N98336-UN-04MAY12

A - Speed Limit Decal

NOTE: Know your local or national maximum transport speed limit before transporting the machine.

Slow-moving Vehicle (SMV) Emblem: Alerts the following traffic of the machine presence on roads.

BM011348-UN-29MAR17

A - SMV Emblem

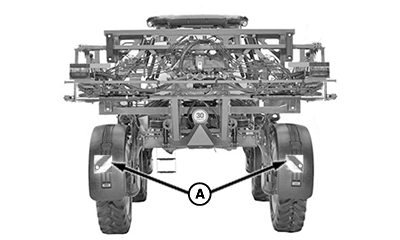

Warning Signs (if equipped): Alerts the machine presence on roads.

BM027461-UN-18OCT18

A - Warning Signs (if equipped)

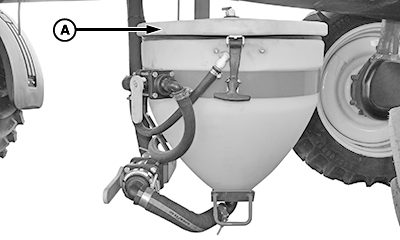

Ground Level Filling: Allows to add chemicals at the ground level which helps prevent spilling or splattering.

BM011344-UN-24APR17

A - Eductor at Ground Level

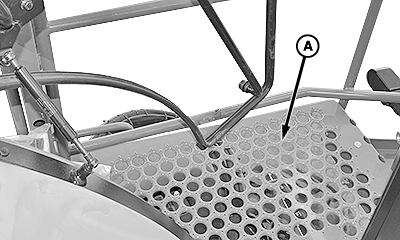

Slip Resistant Surfaces: Helps prevent slippage when walking on platform.

BM011345-UN-24APR17

A - Slip Resistant Surfaces

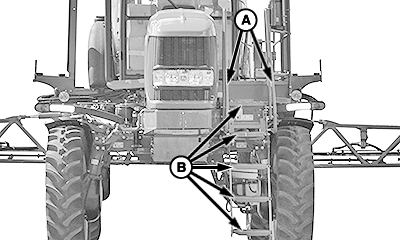

Access Steps and Platforms: Helps prevent slipping when on platform or ladders, also diminishes the dirt and mud buildup.

BM011347-UN-24APR17

A - Handrails

B - Access Steps

Handrails: Gives support when climbing onto the sprayer or walking on platforms.

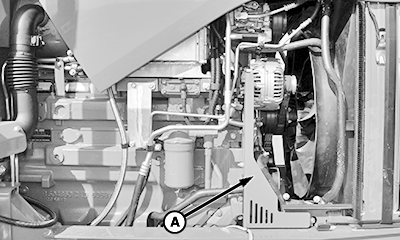

Fan Guards: Protects anyone from the engine fan.

BM011346-UN-24APR17

A - Right-Hand Side Fan Guard

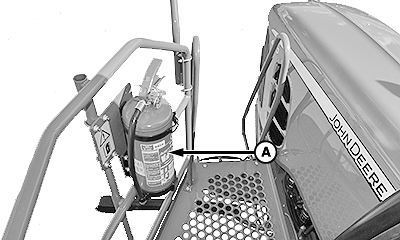

General-purpose Fire Extinguisher (if equipped): It is used to handle grease, oil, electrical, and chemical fires.

BM011341-UN-29MAR17

A - General-Purpose Fire Extinguisher (if equipped)

Beacon Light (if equipped): Alerts oncoming and following traffic of the machine presence on roads.

BM017211-UN-10JAN17

A - Beacon Light

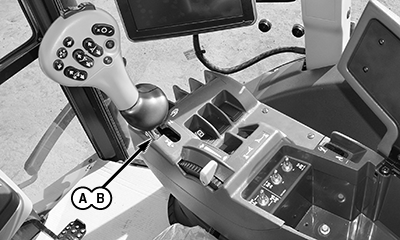

Neutral Start System: Prevents an accidental engine start with multi-function lever in forward or reverse position.

BM011340-UN-29MAR17

A - Position for Neutral Start (Park Position)

B - Automatic Park Brake Position

Automatic Park System: Automatically shifts into park when the sprayer stops.

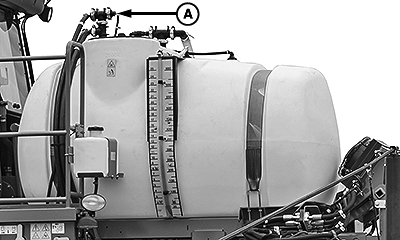

Hoses on Top of the Solution Tank: Helps prevent tank drainage if a hose breaks.

BM018028-UN-14SEP18

A - Hoses on Top of the Solution Tank

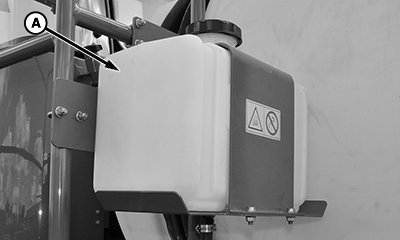

Clean Water Tank: Provides a supply of clean water for in-field cleaning and emergency situations.

BM011343-UN-29MAR17

A - Clean Water Tank

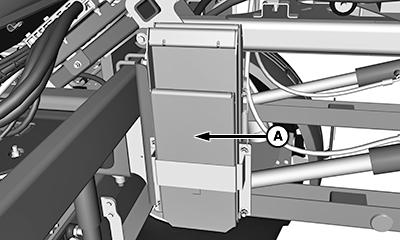

Wheel Chocks (if equipped): Wheel chocks (A) are stored near to the spray boom lifting structure. Use wheel chocks (A) to prevent machine movement when performing maintenance or parking machine.

BM027559-UN-13NOV18

A - Wheel Chock

NOTE: In addition to the safety features described here, other components and systems, safety signs on the machine, safety messages in the Operator's Manual and elsewhere, as well as the care and concern of a capable operator, contribute to the safety of the operators and others.
