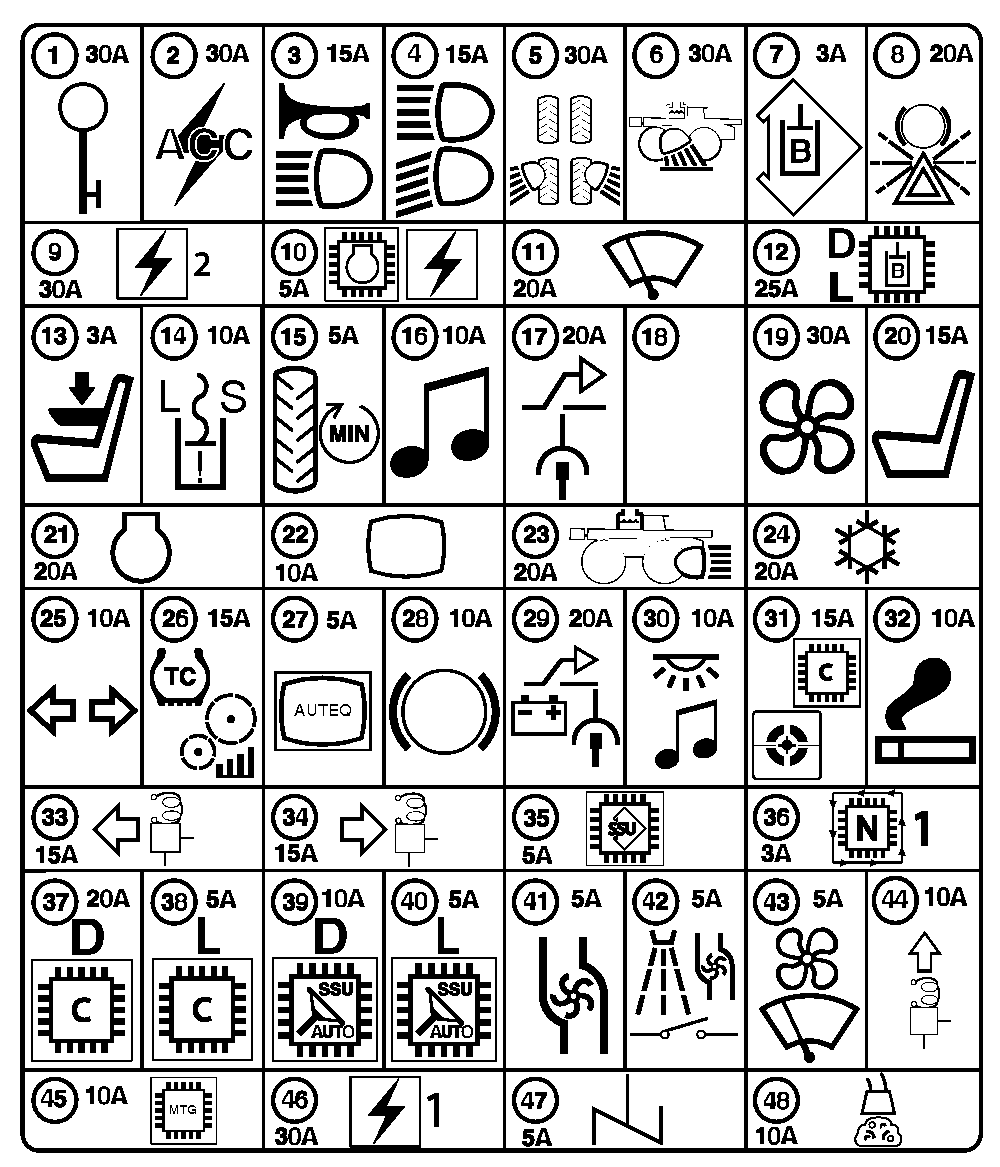

Load Center Fuses

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

BM028396-UN-24OCT19

F1 - Ignition Key (30 A)

F2 - Accessories (30 A)

F3 - Lights and Horn (15 A)

F4 - Road High/Low Lights (15 A)

F5 - Platform Lights (30 A)

F6 - Cab and Fill Station Lights (30 A)

F7 - BHC Memory (unswitched) (3 A)

F8 - Hazard and Brake Lights (20 A)

F9 - ELX2 (30 A)

F10 - ECU ELX2 Power (5 A)

F11 - Windshield Wiper (20 A)

F12 - BHC Bat (25 A)

F13 - Armrest and Multi-function Lever (3 A)

F14 - Load Sense Jam Fuse (10 A)

F15 - Wheel Speed Sensor (5 A)

F16 - Radio (10 A)

F17 - Auxiliary Plug/Ignition (20 A)

F18 - Not Used

F19 - Blowers (30 A)

F20 - Seat (15 A)

F21 - Ignition Switch (20 A)

F22 - Universal Monitor (10 A)

F23 - Hood Lights (20 A)

F24 - Air Conditioning (20 A)

F25 - Turn Signal Switch (10 A)

F26 - Differential Lock/Traction Control and Shift (15 A)

F27 - Auteq Display (5 A)

F28 - Park Brake (10 A)

F29 - Auxiliary Plug/Battery (20 A)

F30 - Radio Memory and Dome Light (10 A)

F31 - CCU Memory (15 A)

F32 - Lighter (10 A)

F33 - Left-hand Solution Valve (15 A)

F34 - Right-hand Solution Valve (15 A)

F35 - SSU Memory (Unswitched) (5 A)

F36 - CAN1 (3 A)

F37 - CCU Driver (Switched) (20 A)

F38 - CCU Logic (Switched) (5 A)

F39 - SSU Driver (Switched) (10 A)

F40 - SSU Logic (Switched) (5 A)

F41 - Remote Load Switch and Flowmeter (5 A)

F42 - Spray Switches and Pump Switches (5 A)

F43 - Cab Blower and Wiper (5 A)

F44 - Center Solution Valve (10 A)

F45 - MTG POWER (10 A)

F46 - ELX1 (30 A)

F47 - Agitation (5 A)

F48 - Foam Marker (10 A)
