Worklights Adjustment

BM011212
BM011212-UN-25OCT16

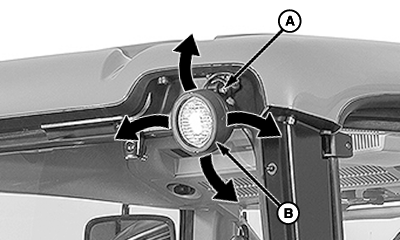

A - Screw

B - Worklight

Manually move the worklight (B) to the desired position.

If necessary, loosen the screw (A) to facilitate the adjustment. Tighten the screw (A) after placing the worklight in the desired position.

NOTE: The worklights (B) can be adjusted to any direction.

LS87647,0000105-19-20170327
