Information Indicators

BM008258-UN-10MAR17

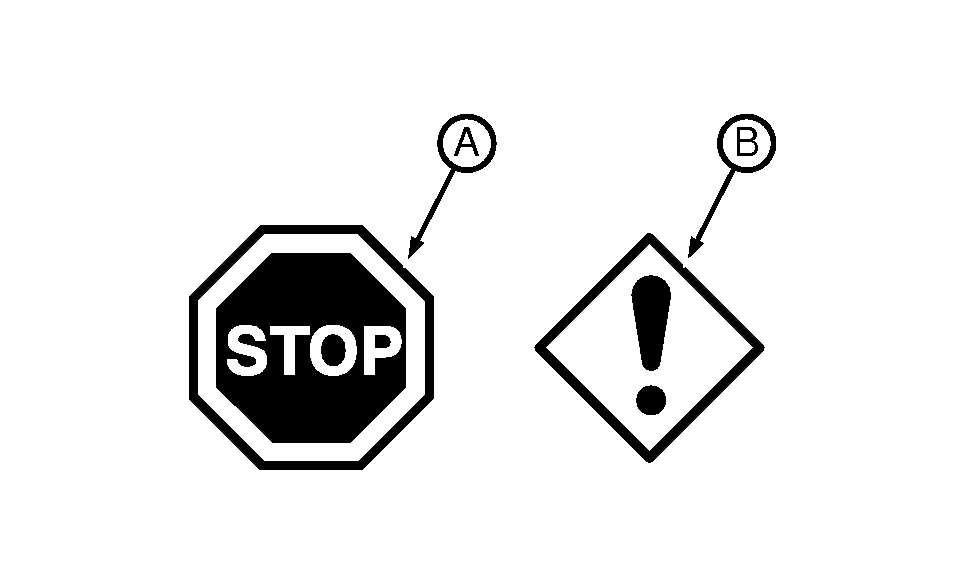

Information Indicators on Panel

A - STOP Indicator

B - Service Alert Indicator

The STOP and Service Alert Indicators are accompanied by informative message, diagnostic trouble code, and/or fault description shown on GreenStar™ display.

STOP Indicator (A): Light flashes and an alarm sounds continuously indicating a problem that needs to be resolved immediately, otherwise critical damage may occur.

Service Alert Indicator (B): Light flashes and an alarm sounds indicating performance or operational problem is detected that needs to be resolved as soon as possible.
