STOP and Service Alert Indicators

NOTE: Not all STOP and service alert indicators show a text message on the GreenStar™ display and a diagnostic trouble code.

STOP Indicator

STOP Indicator (A): The light flashes and an audible alarm sound continuously to alert the operator that a serious malfunction has occurred, which requires immediate attention, otherwise the sprayer is damaged.

N82628-UN-27JAN09

BM011322-UN-10MAR17

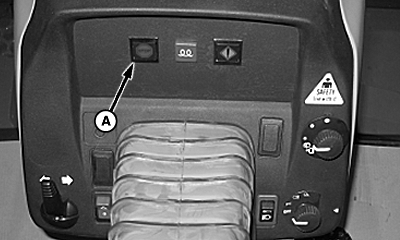

A - STOP Indicator

B - Control Unit

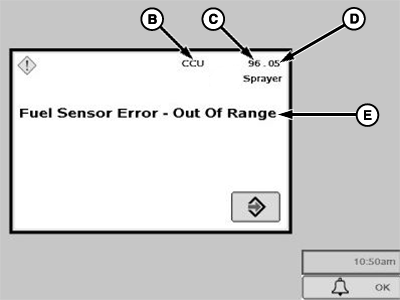

C - Malfunction Code

D - Condition Code

E - Description

When the STOP indicator (A) turns on, immediately stop the operation, reduce the engine speed to low idle, shut off the engine and turn the ignition key to the run position to observe the Message Center for problem identification. Correct the problem before restarting the machine.

When a malfunction or a situation that is out of range is detected, the display is cleared and a full-page diagnostic trouble code containing the control unit (B) followed by an industry standard number is displayed. Numbers to the left of the decimal indicate the malfunction (C) and numbers to the right of decimal indicate the condition (D). A brief description (E) is also shown.

See the diagnostic trouble codes list in this Section for possible actions an operator can take. Record and give this information to your John Deere dealer, if needed to diagnose the problem.

If a code is not listed in this Section of this manual, see your John Deere dealer.

Service Alert Indicator

NOTE: When a service alert indicator (A) turns on, restart the engine to verify if the active diagnostic trouble code reappears before contacting your John Deere dealer. Sometimes the diagnostic trouble code can be corrected by resetting the communication messages when the sprayer is restarted.

N82627-UN-27JAN09

BM002492-UN-30MAR17

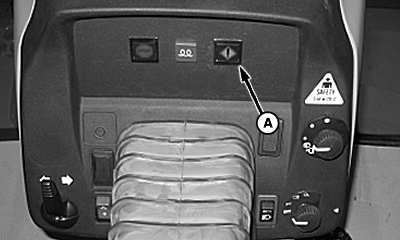

A - Service Alert Indicator

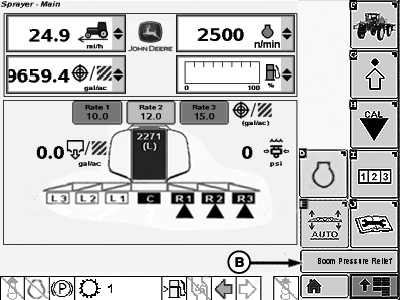

B - Description

Service Alert Indicator (A): The light flashes and an audible alarm sounds to inform the operator that a performance or operational problem has been detected, which needs to be resolved as soon as possible. If appropriate corrective action is not taken soon (serviced, repaired, operated in a different manner), a significant reduction in performance occurs, resulting in machine damage.

A description (B) of the alert is shown at the GreenStar™ display and it remains visible as long as the condition persists.

See the diagnostic trouble codes charts or the Troubleshooting Section in this manual for possible actions an operator can take. Record and give this information to your John Deere dealer, if needed to diagnose the problem.

If a code is not listed in this Section of this manual, see your John Deere dealer.
