Remove and Install Wheel Shields (If Equipped)

  1. Park the sprayer on level ground.

  2. Remove the screws (B) and (C).

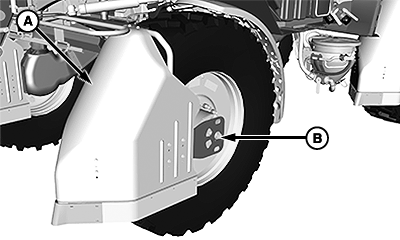

    BM011323
    BM011323-UN-17MAR17

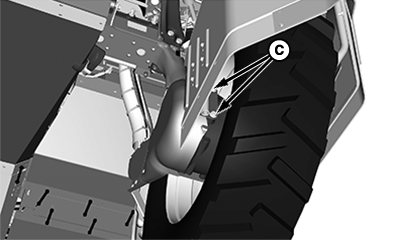

    BM011324
    BM011324-UN-17MAR17

    A - Wheel Shield

    B - Screw

    C - Screws


  3. Remove the wheel shield (A).

  4. To install the wheel shield, follow the procedure in reverse order.

LS87647,0000628-19-20170317
