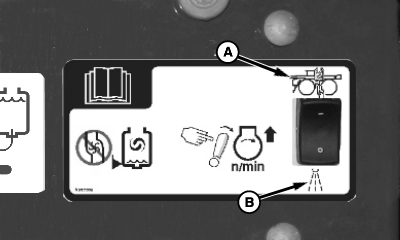

Remote Solution Pump Switch Decal

N85452-UN-21JUL09

A - Load Position

B - Spray Position

IMPORTANT: Do not run the solution pump dry or damage occurs.

Activation of switch causes solution pump to start and engine speed to increase.

Load function is disabled if the sprayer is started and the switch is in load position (A). To reset, cycle the switch to spray position (B).
