Emergency Brake Decal

N98331-UN-04MAY12

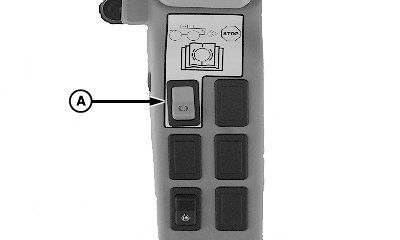

A - Emergency Brake Switch

IMPORTANT: The emergency brake engages the park brake system. Engaging emergency brake system while the sprayer is moving causes significant wear to the park brake components. Test the park brakes to verify proper operation after using the emergency brake.

NOTE: Do not engage the emergency brake switch (A) when parking the sprayer. Park brakes are automatically applied when multi-function lever is placed in the park position and the SprayStar™ system reads 0 km/h (0 mph) for 0.5 s. Or when the engine is off.
