Multi-Function Lever Height Adjustment

CAUTION: Do not adjust the height of the multi-function lever while operating the machine. Always adjust when the machine is stopped.

1.

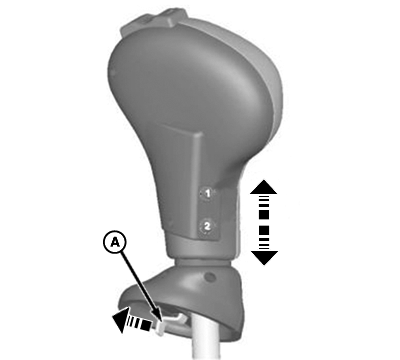

   BM011326-UN-13APR17

   A - Lock

   Pull out the lock (A).

---




2. While holding out the lock (A), move the multi-function lever to the desired position.

   NOTE: The are three possible height positions.

3. Release the lock (A).

4. Check if the multi-function lever is securely locked.
