Cab Door

CAUTION: Avoid undue exposure to hazardous chemicals, noise, and debris. Always keep the door closed during the sprayer operation.

Unlock the door with the key supplied with your machine.

CQ297255
CQ297255-UN-19AUG14

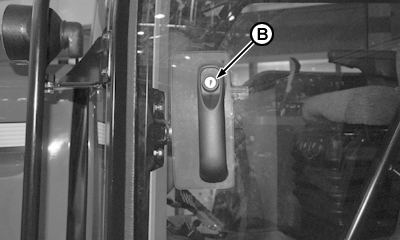

B - Button

To open the door from outside, press the button (B) and pull the door handle.

CQ297254
CQ297254-UN-19AUG14

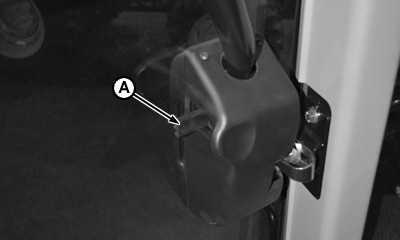

A - Lever

To open the door from inside, pull the lever (A) and push the door.

NOTE: Always lock the cab door after leaving the machine parked.
