Instrument Check After Engine Start-Up

Coolant Temperature Check

BM004497-UN-30MAR17

BM011335-UN-23MAR17

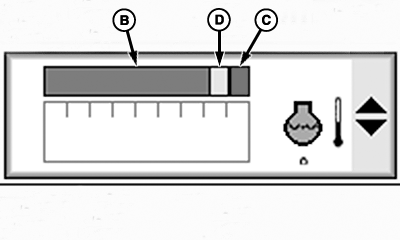

A - Coolant Temperature Gauge

B - Green Region

C - Red Region

D - Yellow Region

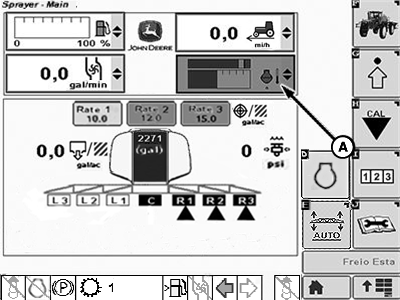

Enable the coolant temperature gauge using one of the drop-down menus in the Sprayer Main Page.

The horizontal bar must be in the green region (B).

If the horizontal bar is on the yellow region (D), stop the sprayer and rectify the cause as soon as possible.

If the horizontal bar is on the red region (C), reduce the engine speed and stop the sprayer immediately. See the Troubleshooting Section.

Fuel Level Check

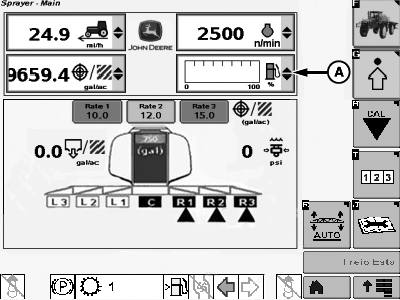

Enable the fuel level indicator (A) using one of the drop-down menus in the Sprayer Main Page.

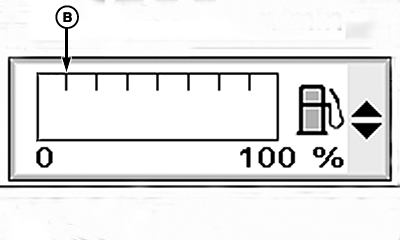

Fill the fuel tank if the fuel level is under the first mark (B) at the fuel level indicator (A).

BM011336-UN-23MAR17

BM011337-UN-23MAR17

A - Fuel Level Indicator

B - First Mark

IMPORTANT: Only use diesel fuel. See Fuels, Lubricants, and Coolant Section for fuel specifications.

NOTE: Never run the fuel tank dry. If the fuel tank runs dry, bleed the fuel system.
