Engine Shutoff

1. Stop the sprayer.

2. Move the hand throttle lever (A) to low idle position.

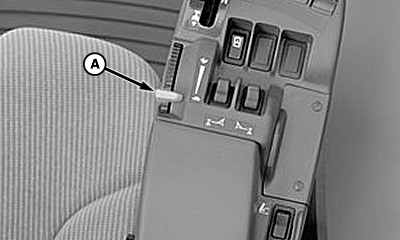

   N82189-UN-03NOV08

   A - Hand Throttle Lever

   IMPORTANT: The engine oil cools down certain engine parts. The sudden stalling of an excessively hot engine damage these parts due to overheating or lack of lubrication.

---




3. Let the engine run on low idle for 2 min.

4. Turn the ignition key to off position.

   CAUTION: Prevent accidents! Always remove the ignition key and store it safely.
