Spray Calibration Page

Navigate to Spray Calibration Page

1. Select the Menu button.


   BM011363-UN-31MAR17

   Menu Button → Sprayer Application Button → Calibration Menu Softkey → Spray Calibration Tab

---




2. Select the Sprayer Application button.

3. Select the Calibration Menu softkey.

4. Select the Spray Calibration tab.

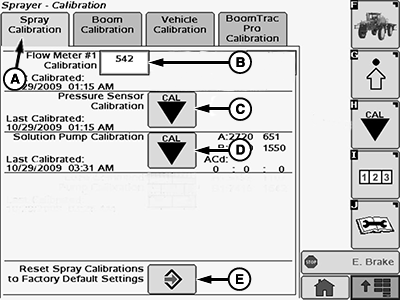

Spray Calibration Page

BM011362-UN-31MAR17

Spray Calibration Page

A - Spray Calibration Tab

B - Flowmeter Calibration

C - Pressure Sensor Calibration

D - Solution Pump Calibration

• Spray Calibration Page (A): Shows the available calibrations regarding the spray system.
• Flowmeter Calibration (B): Allows the operator to calibrate the flowmeter.
• Pressure Sensor Calibration (C): Allows the operator to calibrate the pressure sensor.
• Solution Pump Calibration (D): Allows the operator to calibrate the solution pump.
