Boom Return to Height Calibration

1. Select the Menu button.


   BM011363-UN-31MAR17

   Menu Button → Sprayer Application Button → Calibration Menu Softkey → Boom Calibration Tab


   BM011373-UN-03APR17

   Boom Calibration Tab


   BM011374-UN-03APR17

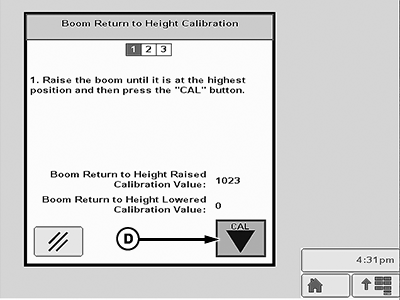

   Boom Return to Height Calibration—Page 1

   A - Calibration Menu Softkey

   B - Boom Calibration Tab

   C - Boom Return to Height Calibration Button

   D - Calibration Button

---




2. Select the Sprayer Application button.

3. Select the Calibration Menu softkey (A).

4. Select the Boom Calibration tab (B).

5. Select the Boom Return to Height Calibration button (C). Boom Return to Height Calibration page is displayed.

6. Follow all instructions shown on the first screen.

7. When finished, select the Calibration button (D).

8. Follow all instructions shown on the second screen.

9. When finished, select the Calibration button (D).

10. Boom Return to Height Calibration message is displayed. Select the Enter button.
