Vehicle Calibration Page

Navigate to Spray Vehicle Calibration Page

1. Select the Menu button.


   BM011363-UN-31MAR17

   Menu Button → Sprayer Application Button → Calibration Menu Softkey → Vehicle Calibration Tab

---




2. Select the Sprayer Application button.

3. Select the Calibration Menu softkey.

4. Select the Vehicle Calibration tab.

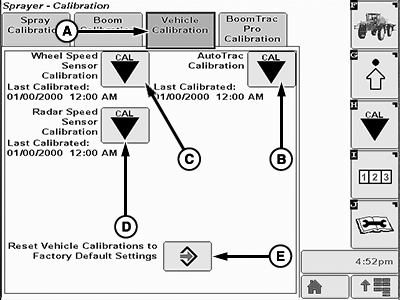

Vehicle Calibration Page

BM011377-UN-03APR17

A - Vehicle Calibration Tab

B - AutoTrac™ Calibration

C - Wheel Speed Sensor Calibration

D - Radar Speed Sensor Calibration

E - Reset Vehicle Calibrations to Factory Default Settings

• Vehicle Calibration Tab (A): Shows the available calibrations regarding the sprayer.
• AutoTrac™ Calibration (B): Allows the operator to calibrate the AutoTrac™.
• Wheel Speed Sensor Calibration (C): Allows the operator to calibrate the wheel speed sensor.
• Radar Speed Sensor Calibration (D): Allows the operator to calibrate the radar speed sensor.
• Reset Vehicle Calibrations to Factory Default Settings (E): Allows the operator to reset all vehicle calibrations to factory default settings.
