Fill Fuel Tank

CAUTION:

TS202
TS202-UN-23AUG88

Handle fuel with care: It is highly flammable. Do not refuel the machine while smoking or when near open flame or sparks.

Always shut off the engine before refueling the fuel tank. Fill the fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

Regardless of the fuel level, fill the fuel tank at end of each day to prevent condensation in the tank. Condensation can be produced when trapped moist air cools. Use fuel as specified in Fuels, Lubricants, and Coolant Section.

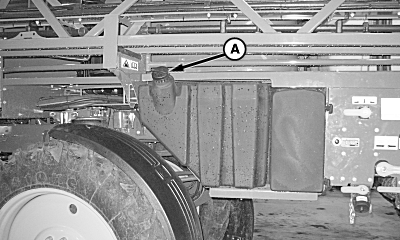

N96756
N96756-UN-01FEB12

A - Fuel Tank Cap

Park the sprayer in level ground and remove the fuel tank cap (A).

The fuel tank can be filled by standing on the platform. Also, a commercial ladder can be used as an alternative to fill the fuel tank.
