Outside Mirrors

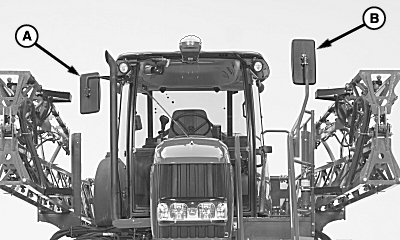

N84591
N84591-UN-19MAY09

A - Right-hand Outside Mirror

B - Left-Hand Outside Mirror

The outside mirrors (A) and (B) were designed to provide safety and greater visibility during operations.

Adjust the right-hand (A) and left-hand (B) outside mirrors for desired rear visibility by pivoting the mirror heads.

NOTE: Use a commercial ladder to access and adjust the right-hand outside mirror (A).

OU90500,00000FD-19-20170424
