Turn-Signal Lever

CAUTION: When driving on public roads, frequently check for traffic from rear, especially in turns, and use the turn-signal lights.

N82178
N82178-UN-03NOV08

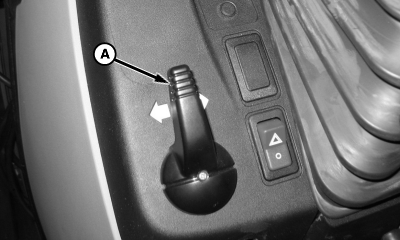

A - Turn-Signal Lever

Turn right the turn-signal lever (A) for a right turn, or left for a left turn.

BM017202
BM017202-UN-03MAR17

B - Left Turn Indicator

C - Right Turn Indicator

The corresponding turn-signal indicator (B) or (C) is displayed on the Sprayer Main Page. Return the turn-signal lever to center position after completing the turn.

OU90500,0000360-19-20170327
