Hazard Warning Light Switch

CAUTION: To prevent possible personal injury, always operate hazard warning lights when traveling on highway or public roads, except where prohibited by law.

IMPORTANT: Always turn off the hazard warning lights when spraying.

NOTE: If the turn-signal lights are activated while the hazard warning lights are on, the hazard warning lights turn off until the turn-signal lever returns to the center position.

N82180
N82180-UN-03NOV08

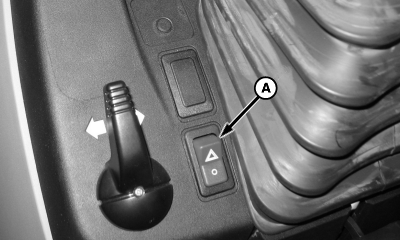

A - Hazard Warning Lights Switch

To turn on the hazard warning lights, push up the hazard warning lights switch (A).

BM017203
BM017203-UN-03MAR17

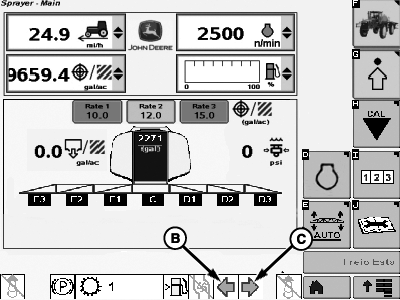

B - Left Turn Indicator

C - Right Turn Indicator

When the hazard warning lights are on, both turn-signal indicators (B) and (C) flash on the Sprayer Main Page.

NOTE: The hazard warning lights operate regardless of the ignition key position.

OU90500,0000361-19-20170327
