Light Switches

CAUTION: Avoid injury or death caused by a collision with another vehicle. Always obey the traffic laws when driving on public roads. Use the headlights on low-beam for oncoming vehicles. Avoid using the worklights, which may confuse other drivers.

BM004493-UN-19SEP15

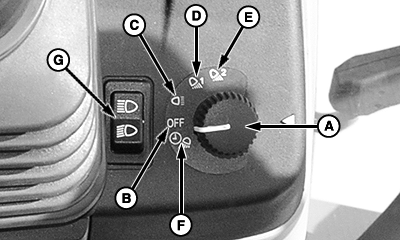

A - Light Switch

B - OFF Position

C - Headlights Position

D - Worklights Position 1

E - Worklights Position 2

F - Exit Lighting

G - High-beam Headlights Switch

The light rotary switch (A) has five positions that are independent of the ignition key position:

OFF Position (B): Turns off all the exterior lighting with exception of the hazard warning lights if the hazard warning light switch is on.

Headlights (C): Turns on the low-beam headlights, front and rear hazard warning lights, front clearance lights, and tail lights.

Worklights Position 1 (D): Turns on the low-beam headlights, work headlights, and platform lights.

Worklights Position 2 (E): Turns on the low-beam headlights, work headlights, worklights, platform lights, and fill station light.

Exit Lighting (F): Each time the exit lighting position is activated, the worklights and fill station light turn on for 30 s. Each bump increases the time that the lights stay on by 30 s for a maximum time of 90 s. Use this feature to provide safe lighting to the machine and its surroundings when exiting the cab.

High-beam Headlights Switch: To activate the high-beam headlights, push the upper portion of the switch. To switch back to low-beam headlights, push the lower portion of the switch.
