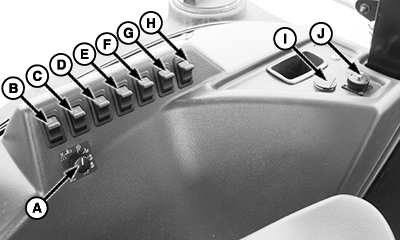

Side Console

CQ298868-UN-19JAN15
A - Rate Select Switch
B - L3 Spray Control Switch
C - L2 Spray Control Switch
D - L1 Spray Control Switch
E - Center Spray Control Switch
F - R1 Spray Control Switch
G - R2 Spray Control Switch
H - R3 Spray Control Switch
I - Cigarette Lighter
J - Convenience Outlet
NOTE: The spray boom sections are numbered with number 1 being
the nearest to the sprayer center and number 3 being the most distant.
|
|
