Operator’s Seat

IMPORTANT: Park the machine and shut off the engine before doing any seat adjustment.

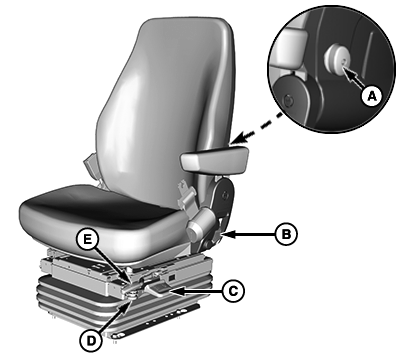

CQ298876-UN-20JAN15

A - Lumbar Support Adjustment Knob

B - Backrest Adjustment Lever

C - Height Adjustment Lever

D - Fore/Aft Movement Lock

E - Fore/Aft Adjustment Lever

Lumbar Support Adjustment: To adjust the lumbar support, turn the lumbar support adjustment knob (A) clockwise or counterclockwise.

Backrest Adjustment: To recline the backrest to the desired position, pull up the backrest adjustment lever (B) and lean back. To lock the backrest in position, release the backrest adjustment lever.

Height Adjustment: To adjust the seat height, turn the ignition key to run position and press down or pull up the height adjustment lever (C).

NOTE: The operator's seat has an air suspension system for operator comfort. The seat has a self-contained electric compressor to adjust the seat suspension and match the operator's height and weight.

Fore/Aft Movement Lock: To allow the seat move forward or backward, push down the fore/aft movement lock (D). To prevent forward or backward movement, pull it up.

Fore/Aft Adjustment: To allow the seat slide forward or backward, pull up the fore/aft adjustment lever (E).
