Engine Start

CAUTION: Avoid the possibility of personal injury or death:

• Be sure that everyone is clear of the machine.
• Only start up the engine from the operator’s seat.
• Do not start up the engine by shorting across the starter terminals. Sprayer starts in gear if the normal circuitry is bypassed.
• Engine starting with the multi-function lever out of the park position indicates a malfunction of the neutral start circuit. To repair the neutral start system, see your John Deere dealer.

1. Turn off all the switches and accessories, including the radio and dome light.

2. Move the multi-function lever (A) to PARK position.


   TS177-UN-11JAN89


   BM011332-UN-23MAR17


   N98312-UN-04MAY12

   A - Multi-function Lever

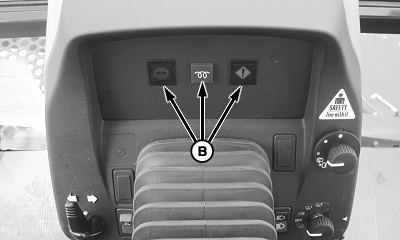

   B - Indicator Lights

   C - Hand Throttle Lever

   D - Brake Pedal

---




3. Move the hand throttle lever (C) to low idle position.

4. Depress the brake pedal (D).

5. Sound the horn twice.

6. Turn the ignition key to run position.

   IMPORTANT: Avoid starter motor damage. Do not operate the starter motor more than 30 s. Wait at least 2 min before trying again. If engine does not start in four attempts, refer to Troubleshooting Section.

   NOTE: The indicator lights (B) turn on when key is in run position and engine is not running.

   NOTE: If the external temperature is below 5°C (40°F), refer to Cold Weather Starting in this Section.

7. Wait a few seconds and turn ignition key to start position. Release the ignition key when engine starts.

   IMPORTANT: Protect turbocharger during start-up by not accelerating above 1000 rpm until normal engine idle speed is established (900 rpm).

   NOTE: The indicator lights (B) turn off when the ignition key is released.

   NOTE: Engine speed is limited until operating temperature is reached.
