Operate in the Field

CAUTION: Do not turn on the machine until you are sure that nobody is in the danger zone.

1. Unfold spray boom.

2.

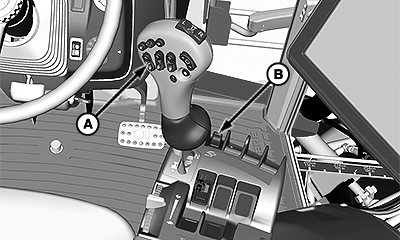

   BM004503-UN-22SEP15

   A - Raise/Lower Switch

   B - Solution Pump Switch

   Press raise/lower switch (A) to adjust the operating height.

---




3. Set up the SprayStar™ control unit for the desired application. (See SprayStar™ System Section for proper setup procedure.)

4. To engage the solution pump, push forward on the solution pump switch (B).

5. View spray operation displayed on the monitor screen.

6.

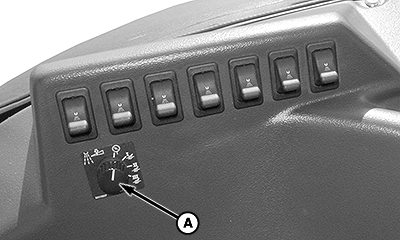

   BM004504-UN-22SEP15

   A - Rate Control Switch

   Turn rate control switch (A) to desired application rate (1, 2, or 3) or to the manual pressure setting.

   NOTE: Rate selected is highlighted on the monitor screen.

   NOTE: If equipped with the Swath Control Pro™, the AUX position on the rate control switch is used for the map-based rate.

---




7.

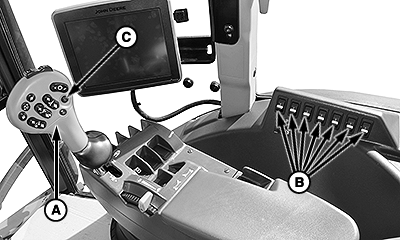

   BM004506-UN-22SEP15

   A - Multi-Function Lever

   B - Spray Boom Section Switches

   C - Master On-Off Switch

   Push multi-function lever (A) slowly forward to start forward motion.

---




8. Lift all spray boom section switches (B).

   NOTE: Enabled spray booms have black fill color indication on the display.

9. To start spraying operation, press master on-off switch (C).

   NOTE: Actively spray boom sections have cone indication under the spray boom section on the display.

10.
    N66488-UN-15SEP04

    A - Master On-Off Switch

    At the row end, press master on-off switch (A) to stop spraying. All other switches can remain in preset positions.

    NOTE: Spray system shutdown is not immediate. Solution flow will continue for a few seconds after pressing master on-off switch (A). For best response time and coverage, turn off spray as you slow for the row end.

---




11. When aligned with the next row, press master on-off switch (A) to resume spraying.

    NOTE: Spray system start-up is not immediate. To overcome delayed response, press master on-off switch (A) while moving forward to start spraying just before solution is needed.
