Operate Spray Boom Section Control
N63297-UN-15JUL03

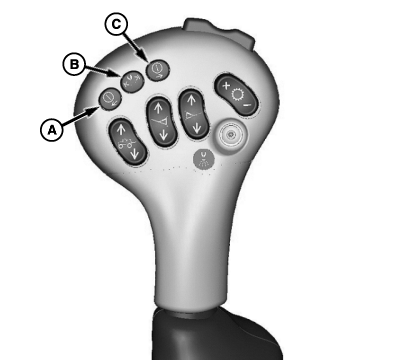

A - Left-Hand Spray Boom Section Control Button
B - Reset Spray Boom Sections Control Button
C - Right-Hand Spray Boom Section Control Button
This machine is equipped with spray boom section control switching. That gives the operator another way to shutoff the spray boom sections in sequence without removing the hand from the multi-function lever. This function is useful when working with point rows and waterways.
N64668-UN-16DEC03

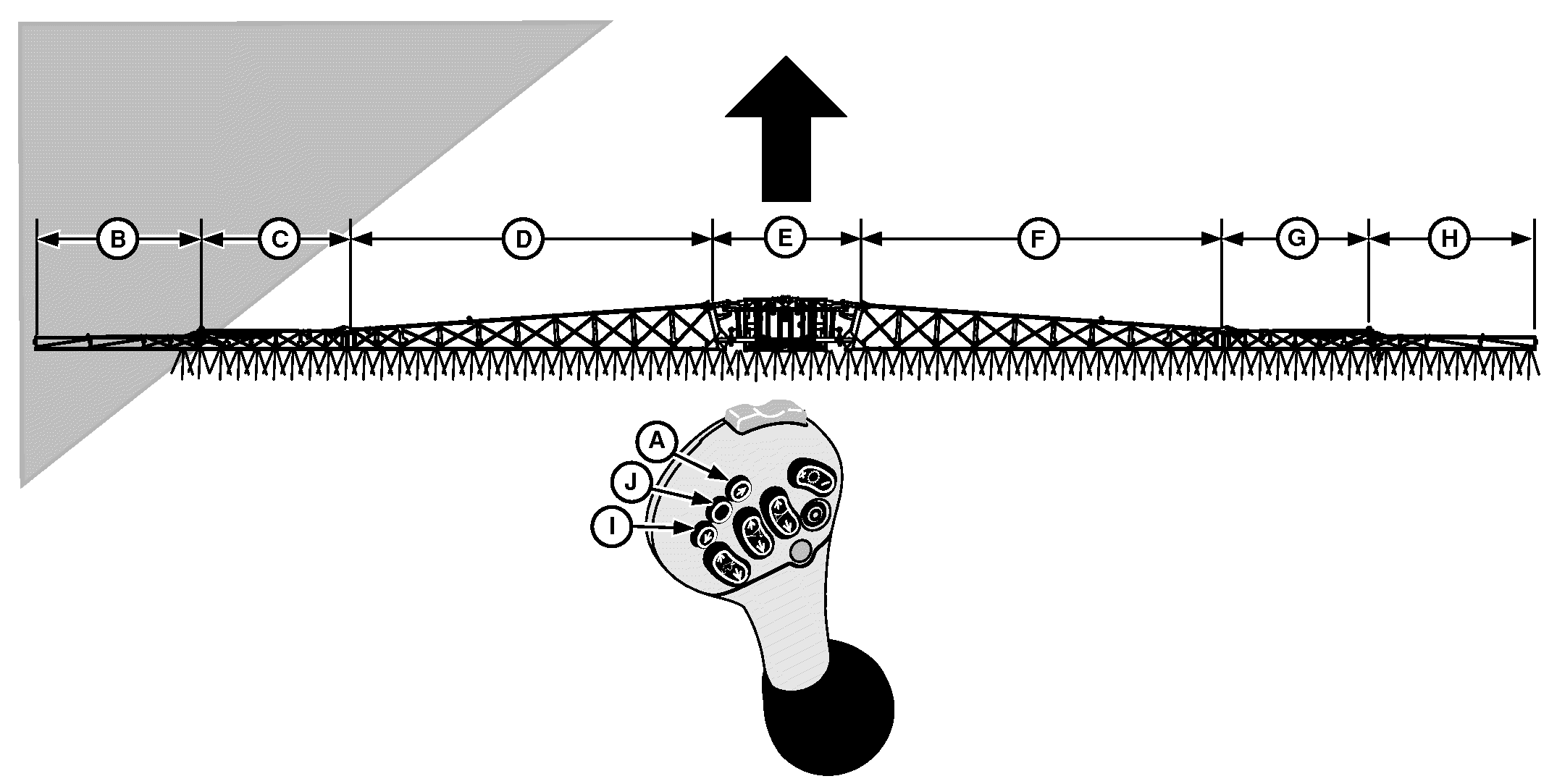

A - Right-Hand Spray Boom Section Control Button
B - L3 Spray Boom Section
C - L2 Spray Boom Section
D - L1 Spray Boom Section
E - Center Spray Boom Section
F - R1 Spray Boom Section
G - R2 Spray Boom Section
H - R3 Spray Boom Section
I - Left-Hand Spray Boom Section Control Button
J - Reset Spray Boom Sections Control Button
EXAMPLE: If the sprayer is upon an angled waterway, and you would like to shutoff sections in sequence from the left-hand side to the right-hand side, press, and release the right-hand spray boom section control button (A) once, to shutoff L3 spray boom section (B). Press, and release right-hand spray boom section control button (A) again, to shutoff L2 spray boom section (C). Continue to press and release right-hand spray boom section control button (A) to shutoff remaining sections across the entire spray boom.Once all sections have been shutoff, press and release right-hand spray boom section control button (A) again, to turn on section (B), then (C) and so on.
If only a few sections have been turned off using the right-hand spray boom section control button (A), you can turn them back on in sequence, one at time, using left-hand spray boom section control button (I) or turn them all back on at once using reset spray boom section control button (J).
Sections can be shutoff from the right-to-left using button (I).
NOTE: The fence row nozzles shutoff when the outside spray boom sections (R3 and L3) are switched off.
|
