Park Machine

1.

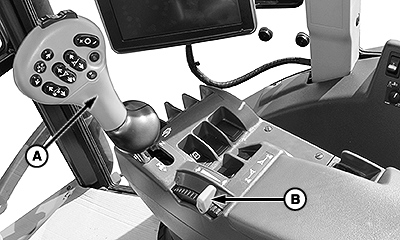

   BM004508-UN-22SEP15

   A - Multi-Function Lever

   B - Hand Throttle Lever

   Place the multi-function lever (A) in Park position and press down on the service brake pedal.

   NOTE: Do not engage the emergency brake switch when parking machine. The park brakes are activated when multi-function lever is placed in the Park position, the SprayStar™ system reads 0 mph for 0.5 seconds, or the engine is shutoff.

---




2. To reduce engine speed to low idle, pull back hand throttle lever (B).

3. Turn off all lights and accessories.

   IMPORTANT: Before stop the engine, let it run in low idle for at least 2 minutes to cool down hot engine parts.

4. Turn off the engine and remove the key.

   NOTE: The ladder lowers automatically.
