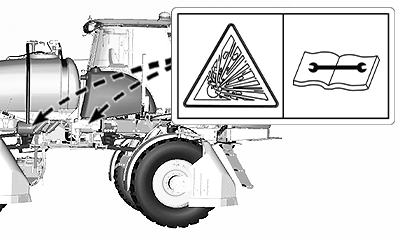

On-Board Air Tank Decal

CAUTION: Avoid injury, as well as possible damage to the accumulator or hydraulic system. Maintain recommended air pressure. See your John Deere dealer.

CAUTION: Air system at high pressure can discharge debris or components. Always wear personal protective equipment when servicing.

BM004487-UN-18SEP15

Left-hand Side of the Machine

BM004489-UN-18SEP15

Central Spray Boom Section
