Identification Lights

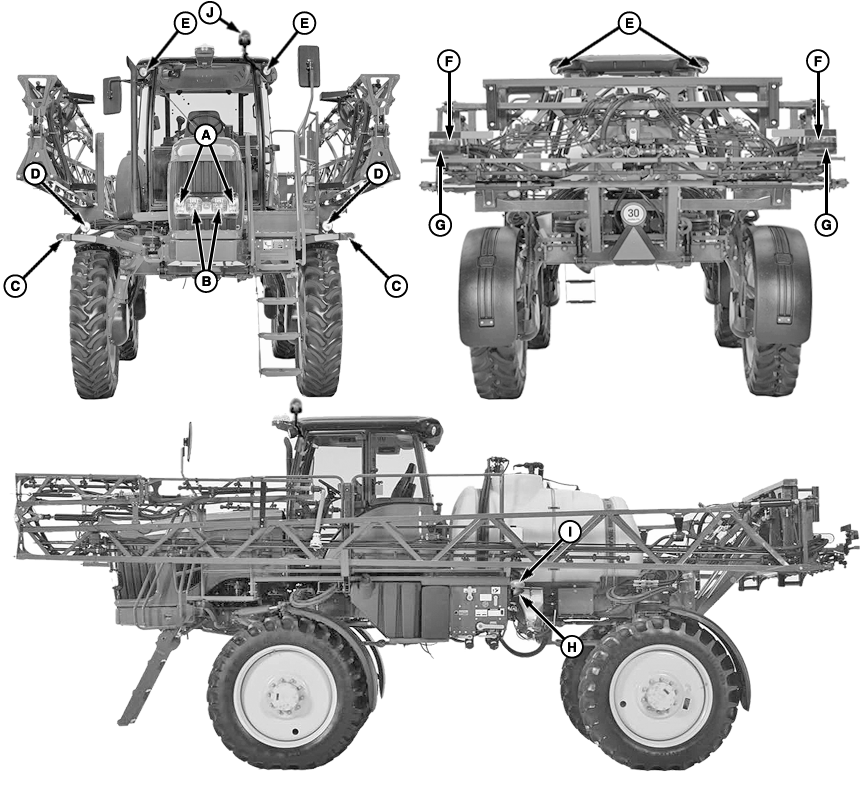

BM004492-UN-20APR17

A - Work Headlights

B - High/Low Beam Headlights

C - Front Turn-Signal and Hazard Warning Lights

D - Front Clearance Lights

E - Work Lights

F - Rear Turn-Signal and Hazard Warning Lights

G - Brake and Tail Lights

H - Fill Station Light (Only at Left-Side)

I - Platform Lights (Both Sides)

J - Beacon Light (If Equipped)

NOTE: Brake lights are independent of turn or light switches. With key in Run position, brake lights illuminate when the service brake is pressed or the machine decelerates at a rate of 3.22 km/h (2 mph) per second or greater.

Brake lights will also illuminate for 2 minutes if operating at speeds less than 1.61 km/h (1 mph) when previously operate above 1.61 km/h (1 mph) speeds.
