Cold Weather Starting

CAUTION: Do not use ether or starting fluids to start engine with a cold weather starting device. Ether is highly flammable and could ignite on engines with a cold weather starting device.

  1. Turn the ignition key (D) to run position (B). The air intake preheater activates automatically, according to fuel temperature.

    BM017254
    BM017254-UN-07MAR17

    N98313
    N98313-UN-04MAY12

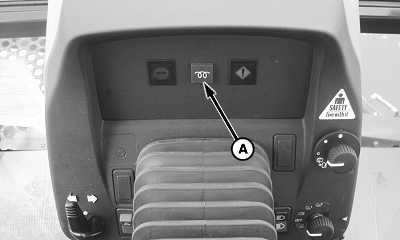

    A - Engine Start Aid Indicator

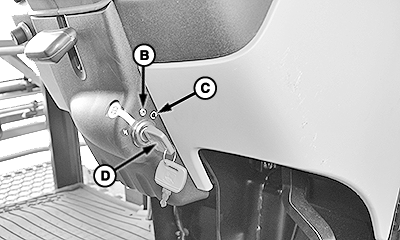

    B - Run Position

    C - Start Position

    D - Ignition Key

    NOTE: The engine start aid indicator light turns on for 0—30 s.


  2. Wait until the engine start aid indicator (A) turns off.

    IMPORTANT: Avoid starter damage. Do not operate starter motor more than 30 s at a time. If engine does not start, wait at least 2 min before trying again.

  3. Turn the ignition key (D) to start position (C). Release the ignition key when the engine starts.

  4. Warm up the engine to operating temperature.

OU90500,0000454-19-20170324
