Reduce Travel Speed

CAUTION: To avoid possible serious injury or death to you or others, always use seat belt properly.

IMPORTANT: Premature brake wear and damage can occur if park brake is accomplished using the service brake pedal, instead of the multi-function lever. Always pull the multi-function lever back before using the service brake pedal.

1.
   N82621-UN-26JAN09

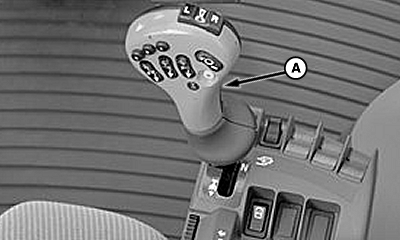

   A - Multi-Function Lever

   To reduce machine speed, pull back on multi-function lever (A) for primary braking.

---




2.
   N82622-UN-08APR09

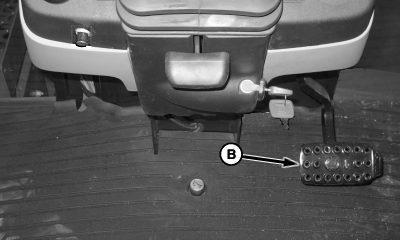

   B - Service Brake Pedal

   For faster braking press down the service brake pedal (B) after multi-function lever has been pulled back.

   NOTE: Be prepared for a rapid decrease in speed. Service brake pedal stops the machine quickly.

---




3.
   N96758-UN-01FEB12

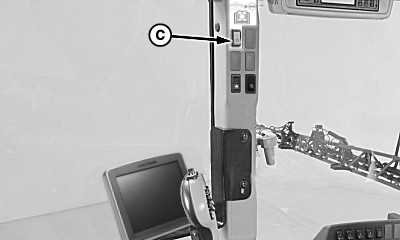

   C - Emergency Brake Switch

   If park brake (multi-function lever) and service brake (pedal) systems are not operating correctly, press the emergency brake switch (C).

   IMPORTANT: Engaging the emergency brake system while machine is moving causes significant wear to the park brake components. Park brakes will need to be tested to verify proper operation after using the emergency brake. (See Check Operation Of Park Brakes in this Section.)

   NOTE: Do not engage the emergency brake switch when parking machine. Park brakes are applied when multi-function lever is placed in the Park position, and the SprayStar™ system reads 0 mph for 0.5 seconds, or the engine is shutoff.

---
