24.4 m (80 ft) Spray Boom Flow Characteristics—Application Rate and Speed

NOTE: Ranges shown are based on water application.

NOTE: The performance curves are shown with agitation off. With agitation on, the maximum output reduces.

BM004511-UN-23SEP15

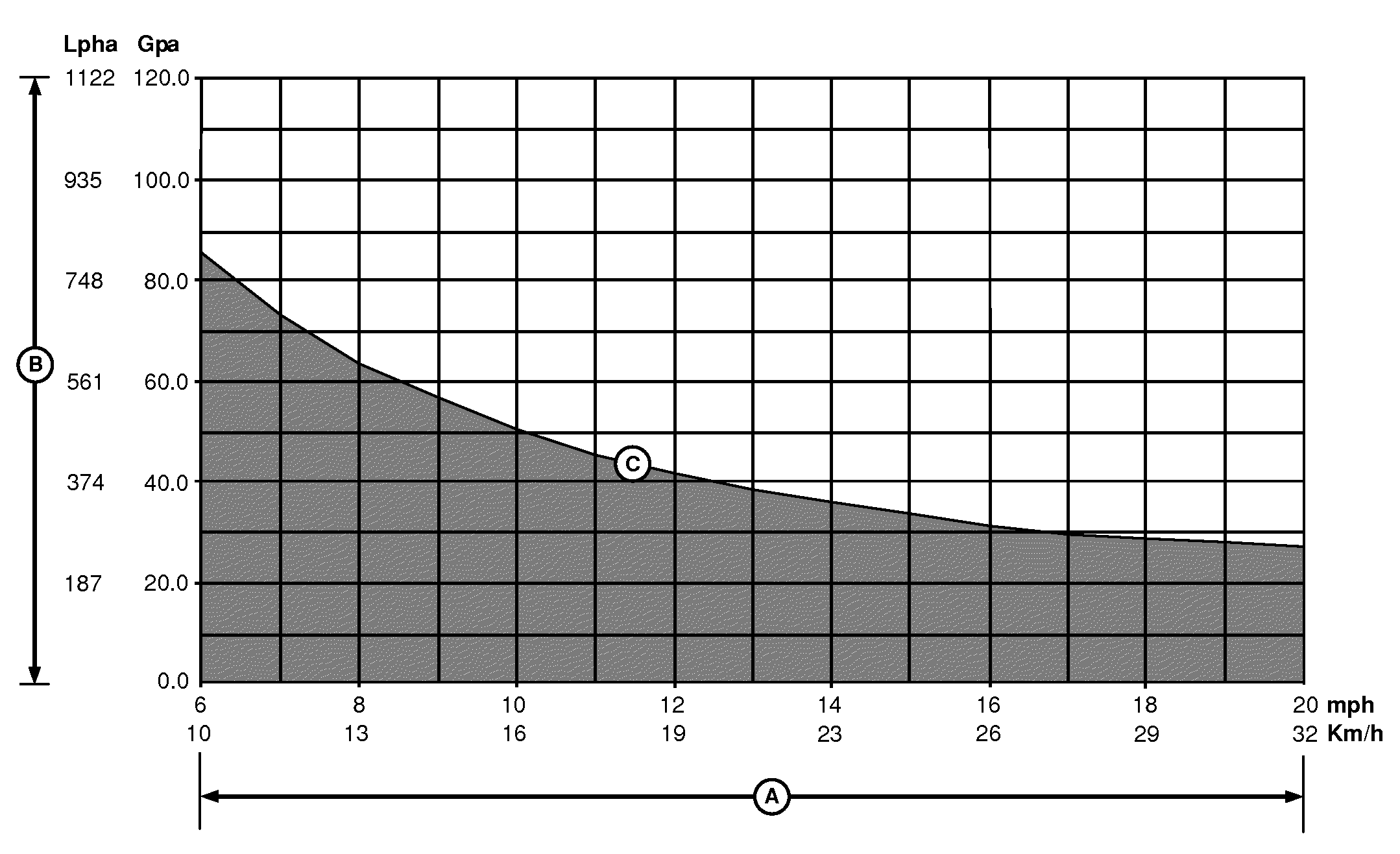

Application Range with 24.4 m (80 ft) Spray Boom

A - Vehicle Speed

B - Standard Plumbing

C - High Flow Plumbing
