Prepare to Spray

1. Turn the Quick Fill™ valve handle (A) to Closed position.


   N98435-UN-07MAY12

   A - Quick Fill™ Valve Handle

   B - Suction Valve Handle

   C - Pressure Bypass/Rinse Valve Handle

   D - Remote Solution Pump Switch

---




2. Turn the suction valve handle (B) to Solution Tank position.

3. Turn the pressure bypass/rinse valve handle (C) to Spray position.

4. Switch downwards the remote solution pump switch (D) to Spray position.

5. Check if spray boom shutoff valve handle (A) is in Open position.


   N81318-UN-08JUN09

   A - Spray Boom Shutoff Valve

---




6. Push the solution pump switch (A) forward to engage solution pump.


   N82185-UN-03NOV08

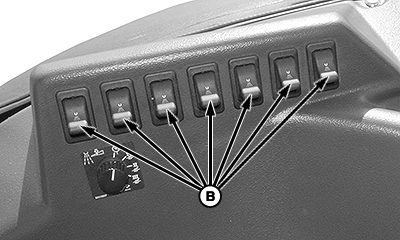

   BM004513-UN-23SEP15

   A - Solution Pump Switch

   B - Spray Boom Sections Switches

---




7. Check if the spray boom sections switches (B) are in upward position.
