Drain Solution Tank

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution tank in an area where people, animals, vegetation, and water supply, and so on, cannot be contaminated.

Quick Fill™ valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quick Fill™ cap, make sure that Quick Fill™ valve is turned off. Do not drain solution onto the ground. Drain into a suitable container.

1. Check if Quick Fill™ valve handle (A) is in Closed position.

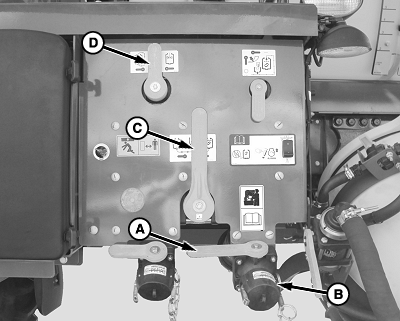

   N98444-UN-07MAY12


   N82356-UN-10JUN09

   Handle in Open Position

   A - Quick Fill™ Valve Handle

   B - Quick Fill™ Valve Cap

   C - Suction Valve Handle

   D - Pressure Bypass/Rinse Valve Handle

   E - Solution Tank Sump Valve Handle

   CAUTION: Quick Fill™ valve contain hazardous agricultural chemicals. Avoid serious injury or death to you or others. Before remove the Quick Fill™ valve cap, make sure that the valve is closed.

---




2. Remove Quick Fill™ valve cap (B).

3. Turn the suction valve handle (C) to Solution Tank position.

4. Turn the pressure bypass/rinse valve handle (D) to Spray position.

5. Turn the solution tank sump valve handle (E) to Open position.

6. Connect nurse tank hose to the Quick Fill™ adapter or place a suitable container under it.

7. Open the Quick Fill™ valve.

8. After solution has drained, close the Quick Fill™ valve.
