Replace Work Headlights Bulbs

1. Raise hood.

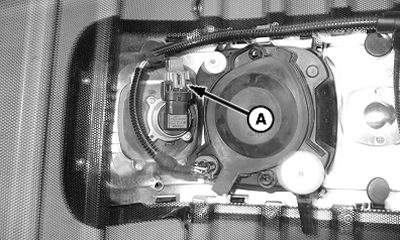

   N85242-UN-05JUN09

   Left-Hand Side Shown

   A - Wiring Harness Plug

---




2. Disconnect wiring harness plug (A).

3. Rotate light bulb (A) counterclockwise approximately 1/4 turn and remove.

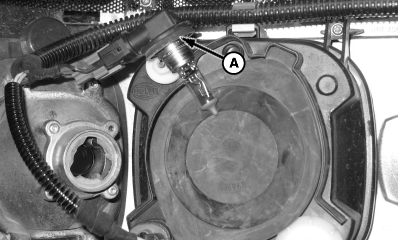

   N85243-UN-05JUN09

   A - Light Bulb

---




4. Install light bulb in reverse order of removal.
