Replace High and Low Beam Headlights Bulbs

  1. Remove and retain rubber boot (A).

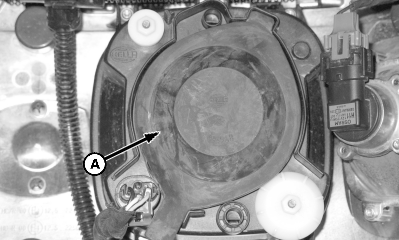

    N85201
    N85201-UN-03JUN09

    A - Boot


  2. Release retaining spring (A) and light bulb (B).

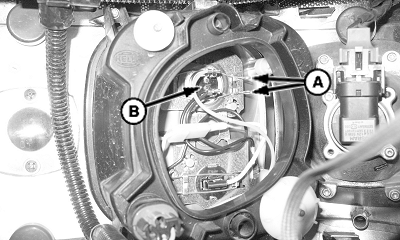

    N85202
    N85202-UN-03JUN09

    A - Retaining Spring

    B - Light Bulb

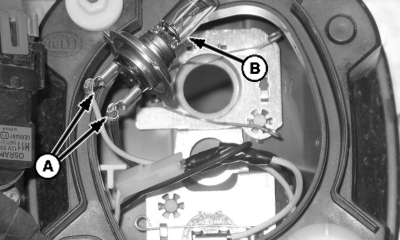

  3. N85246
    N85246-UN-05JUN09

    A - Wires

    B - Light Bulb

    Disconnect wire connectors (A) from light bulb (B).


  4. Install new light bulb.

  5. Reassemble in reverse order of removal.

  6. Remove retaining spring (A) and light bulb (B).

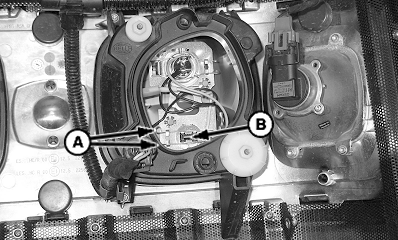

    N85204
    N85204-UN-03JUN09

    A - Retaining Spring

    B - Light Bulb


  7. Disconnect wires at point (A) to remove light bulb (B).

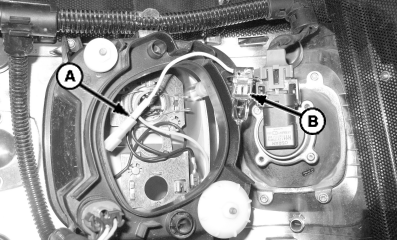

    N85205
    N85205-UN-03JUN09

    A - Wires

    B - Light Bulb


  8. Install new light bulb and connect wires.

  9. Reassemble in reverse order of removal.

  10. Reinstall rubber boot.
