Replace Work Lights—Halogen Bulbs

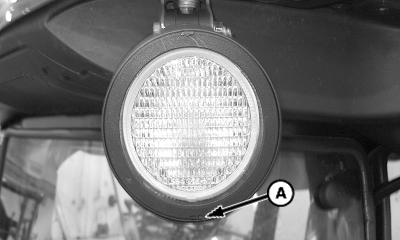

  1. Remove cover (A) at the point indicated.

    N85248
    N85248-UN-05JUN09

    BM017179
    BM017179-UN-22NOV16

    BM017180
    BM017180-UN-22NOV16

    A - Cover

    B - Screws (4 used)

    C - Light Bezel

    D - Retaining Spring

    E - Bulb

    F - Wires

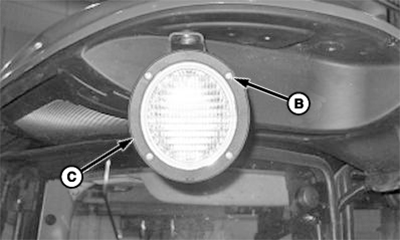

  2. Remove and retain screws (B) and light bezel (C).

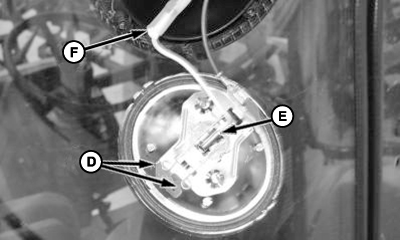

  3. Release retaining spring (D) and bulb (E).

  4. Disconnect wires (F).

  5. Install new bulb and connect wires.

  6. Reinstall previously removed parts in reverse order.
