Replace Front Turn-Signal and Hazard Warning Lights Bulbs

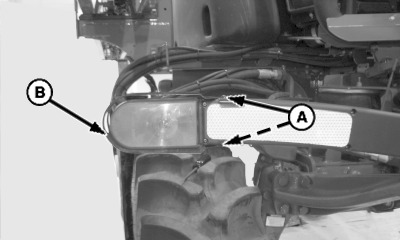

  1. Remove and retain screws (A) to remove lens guard (B).

    N85225
    N85225-UN-05JUN09

    A - Screws (2 Used)

    B - Lens Guard

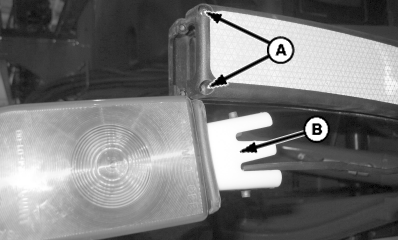

  2. Remove and retain screws (A) necessary on light arm to remove light bulb base (B).

    N85226
    N85226-UN-04JUN09

    A - Screws

    B - Light Base



  3. Rotate light bulb base (B) approximately 1/4 turn counterclockwise to remove from lens.

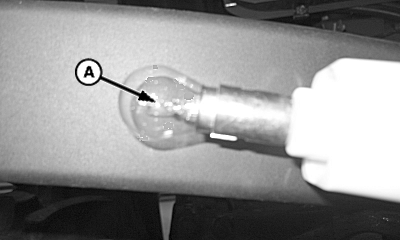

  4. Replace light bulb (A).

    N85227
    N85227-UN-04JUN09

    A - Light Bulb



  5. Reassemble in reverse order of removal.

OU90500,0000473-19-20150924
