Replace Front Clearance Lights Bulbs

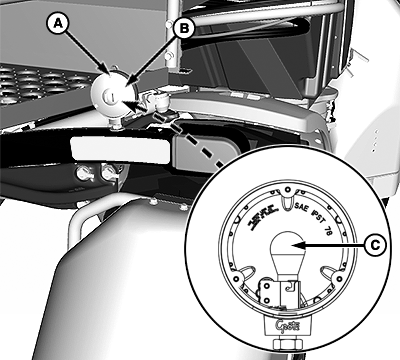

1. Remove screws (A) and lens (B).


   BM004520-UN-24SEP15

   A - Screws (3 used)

   B - Lens

   C - Bulb

---




2. Press bulb (C) and turn it counterclockwise.

3. Install new bulb by pressing it into housing and turning clockwise.

4. Reinstall lens (B) with screws (A).
