Replace Rear Turn-Signal, Hazard Warning, Clearance, Brake, and Tail Lights Bulbs

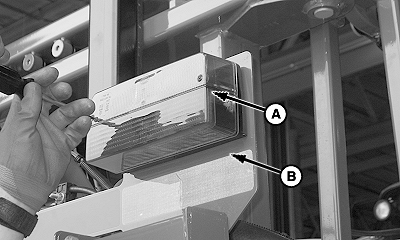

1. Remove lens (A) from warning light assembly (B).


   N85379-UN-17JUN09

   Turn Signal

   A - Lens

   B - Light Assembly

---

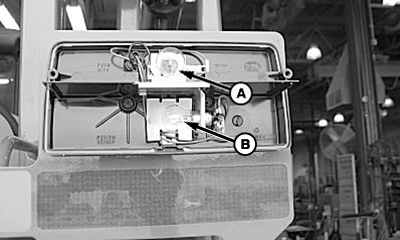

2. Replace light bulbs (A) or (B) as necessary.


   BM004518-UN-24SEP15

   A - Turn-signal and Hazard Warning Light Bulb

   B - Clearance, Brake, and Tail Light Bulb

---




3. Reassemble in reverse order.
