Cab Pressure Indicator

CAUTION: Exposure to chemicals, including pesticides, can cause injury or death. Wear personal protective equipment, in accordance with chemical manufacturers label.

DO NOT rely only in the sprayer cab, cab pressure indicator, or the cab air filters as a full protection against chemical exposure.

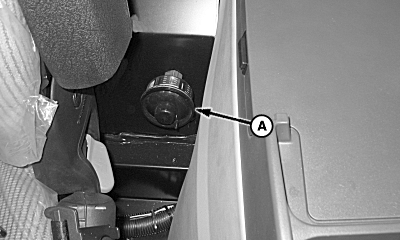

The cab pressure indicator (A) is at the left-hand lower rear corner of the cab.

N83557-UN-18MAR09

BM011331-UN-23MAR17

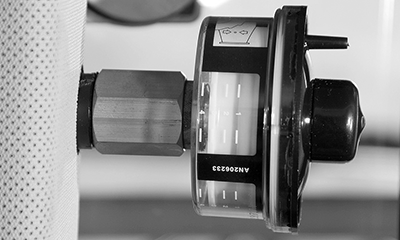

Closed Cab and Windows

BM011330-UN-23MAR17

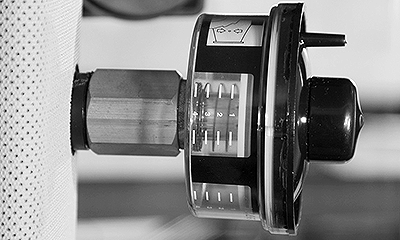

Open Doors or Windows / Leaks in Cab Seals

A - Cab Pressure Indicator

The cab pressure indicator helps in identifying air flow through fresh air filter and potential leaks in cab seals. With the doors and windows closed and fan on, numbers on indicator provide a relative indication of the internal cab pressure.

Note the initial indicator reading when the fresh air filter is new. Indicator reading is normally in numeric middle range and decreases as the filter collects dust and debris.

If indicator reading falls to the scale end with the windows and doors closed, refer to Troubleshooting Section.
