Identification Numbers

Copy these pages to record component serial numbers. This helps when acquiring service parts.

N94055
N94055-UN-02SEP11

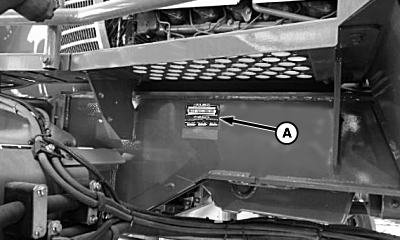

A - Product Identification Number

The product identification number (A) is on left-hand side of frame.

Write here the product identification number:

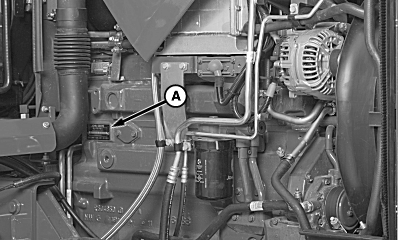

The engine serial number (A) is on the right-hand side of engine block behind oil filter.

N84578
N84578-UN-28APR09

A - Engine Serial Number

Write here the engine serial number:

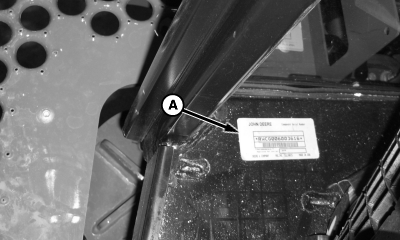

The cab serial number (A) is located under cab floor mat near door.

N85433
N85433-UN-30JUN09

A - Cab Serial Number

Write here the cab serial number:

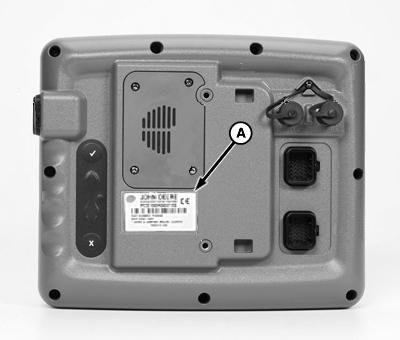

The monitor serial number is located on the back of the monitor.

N89578
N89578-UN-27OCT10

A - Monitor Serial Number

Write here the monitor serial number:

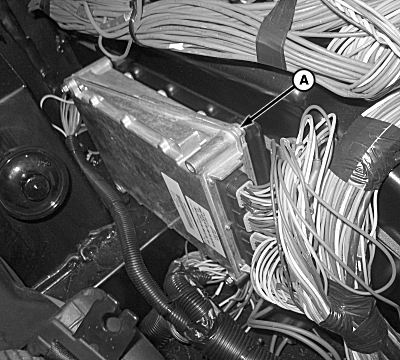

The chassis control unit serial number is on the unit located in left cab console.

N85434
N85434-UN-30JUN09

A - Chassis Control Unit

Write here the chassis control unit serial number:

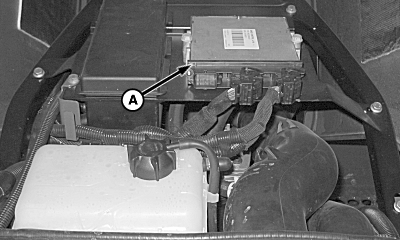

The engine control unit serial number is located on the unit on top of the engine.

N84579
N84579-UN-28APR09

A - Engine Control Unit

Write here the engine control unit serial number:

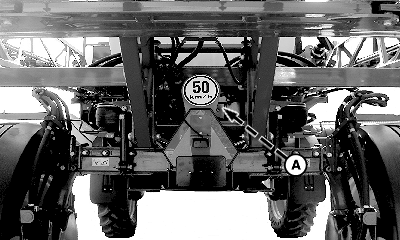

The boom control unit serial number is located on the unit on the rear of the machine below the boom lift hardware.

N98337
N98337-UN-04MAY12

A - Boom Control Unit

Write here the boom control unit serial number:




OU90500,000048D-19-20150928
